- ASSEMBLY CONTAINS: 12” Miter Bar, Base, Adjustable Fence, Knob, Hold Down Clamps, Tape Measure, Abrasive Grip Strips, T-Bolts, Hardware Screws, Washers and Mini Screw Driver
- FUNCTIONS: Primarily serves as a taper cutting jig for table saw – Secondarily operates as a stable straight line ripping jig – Your creativity is the limit
- PREMIUM BUILD: This woodworking taper jig is manufactured with high quality components; The base measures 11-1/2"x 7-5/16"x 1/2" with MDF construction and melamine coating on both sides; Features a safe and easy-to-use design, indexing marks for easy angle setting, knobs and hold down clamps to prevent shifting stock, abrasive grip strips to help stabilize your workpiece and detailed instructions for all skill levels
- VERSATILE: Perfect for cutting tapered compound angles, straight line table saw ripping, making handmade furniture, and a wide range of applications such as making chair legs, building tables, custom built shelves or base cabinets and more. PLEASE NOTE: It fits tight and securely in any standard 3/8" x 3/4" miter slot.
- PLEASE NOTE: The Tapering Jig will fit full sized table saws with miter slots 3/4" x 3/8" and with inside edge of right miter slot between 4 to 4-9/16" or 5 to 5-9/16" or 6 to 6-9/16" from the blade. (Works with DeWalt DWE7491RS 10" Table Saw)

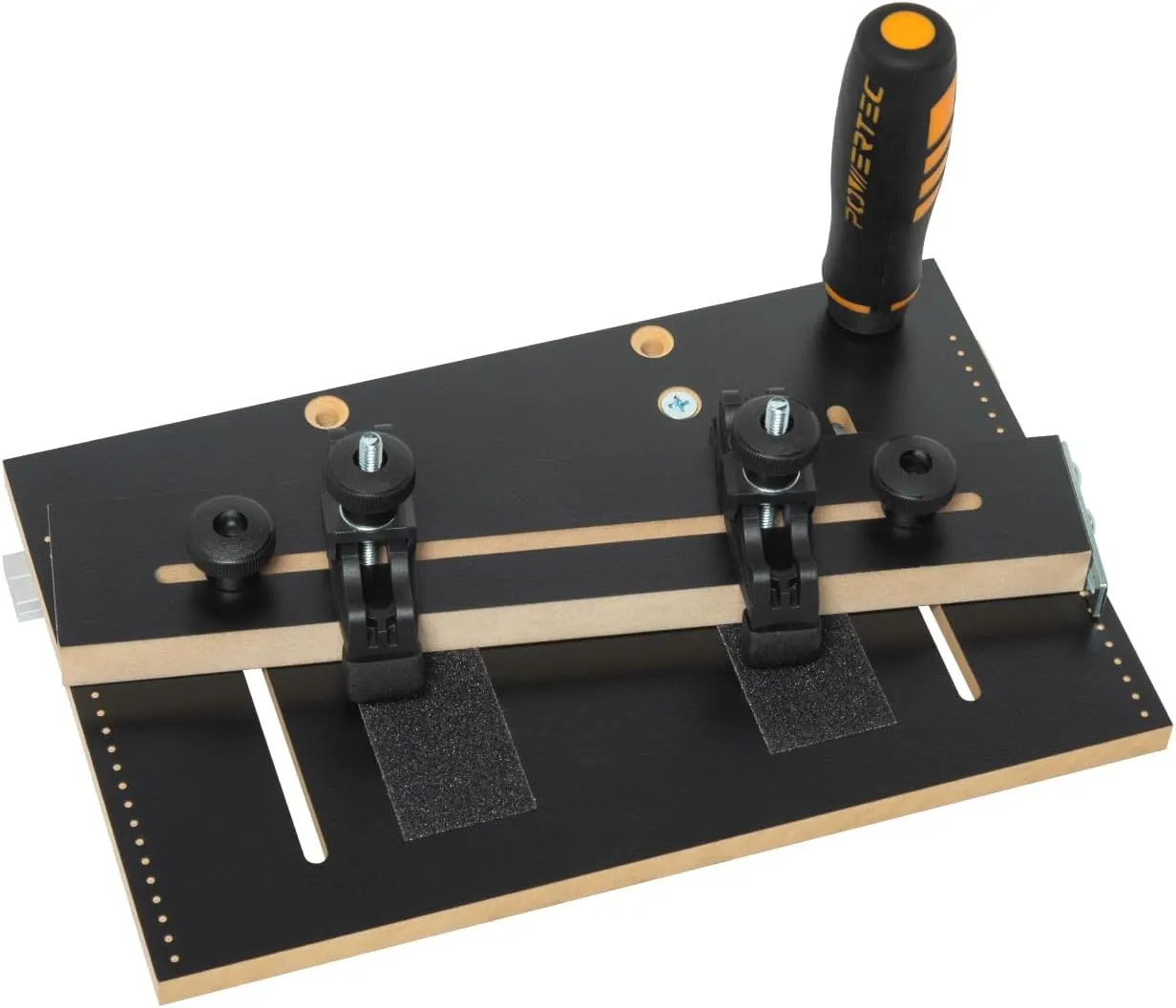

Introducing the Taper / Straight Line Jig by POWERTEC.
This multi-functional woodworking taper jig is designed to make quick, easy and high precision tapered cuts. All-Inclusive, it features everything you need to safely cut long, angled tapers and straight edges along your board and workpiece.
It fits tight and securely in any standard 3/8" x 3/4" miter slot and features an ergonomic handle for seamless push-action performance throughout the cutting process.

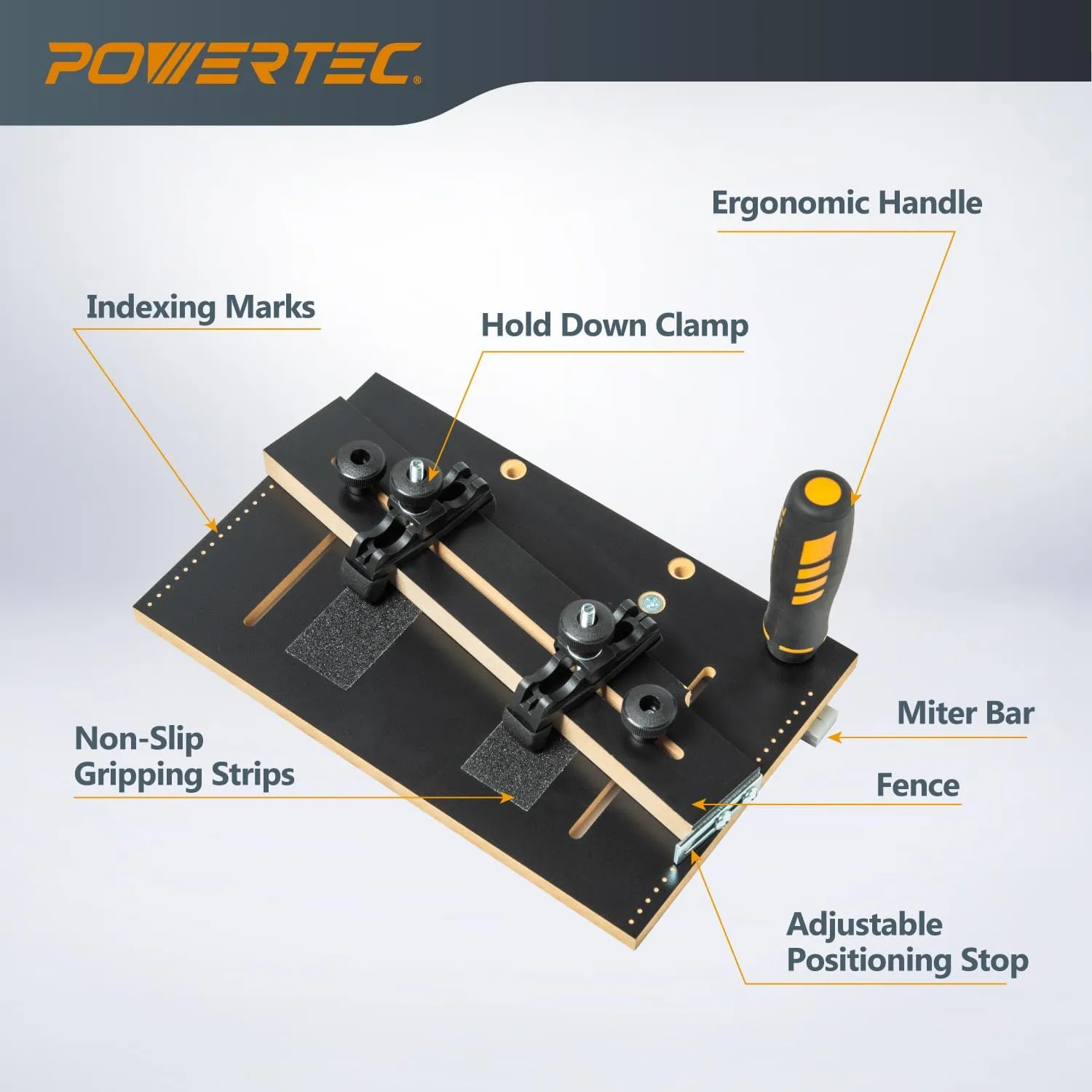

The jig assembly features:
- Indexing marks for simplistic angle setting
- Abrasive grip strips to stabilize your stock
- Non-marring caps on the clamps to prevent damage
- Knobs to comfortably anchor your stock without stripping or damaging
- Hold down clamps to prevent your workpiece from moving and drifting from your fence
Package Contents
(1) Base (MDF) 11-1/2"x 7-5/16"x 1/2"

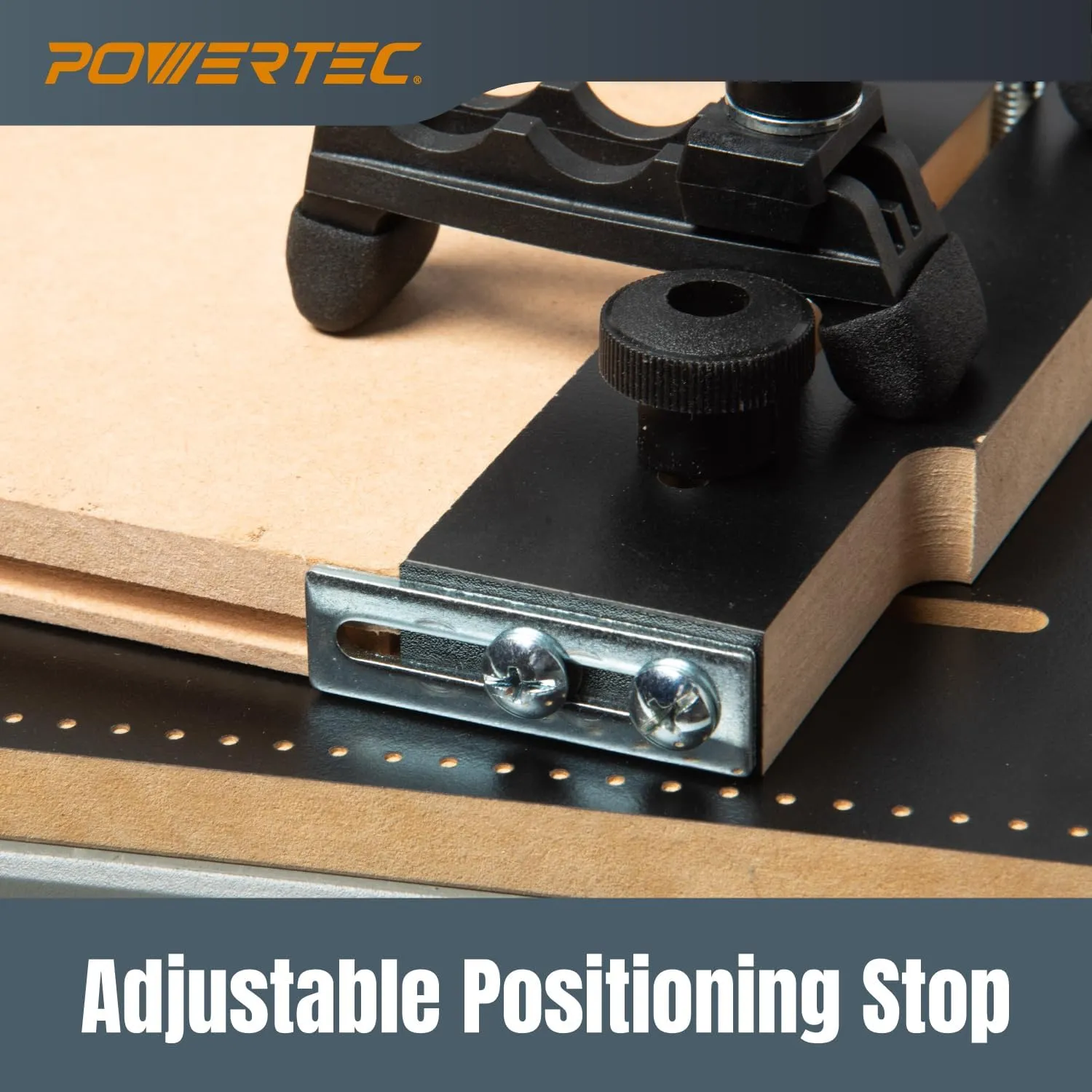

(1) Adjustable Fence with Stop Plate 11-1/2"x 2"x 11/16"

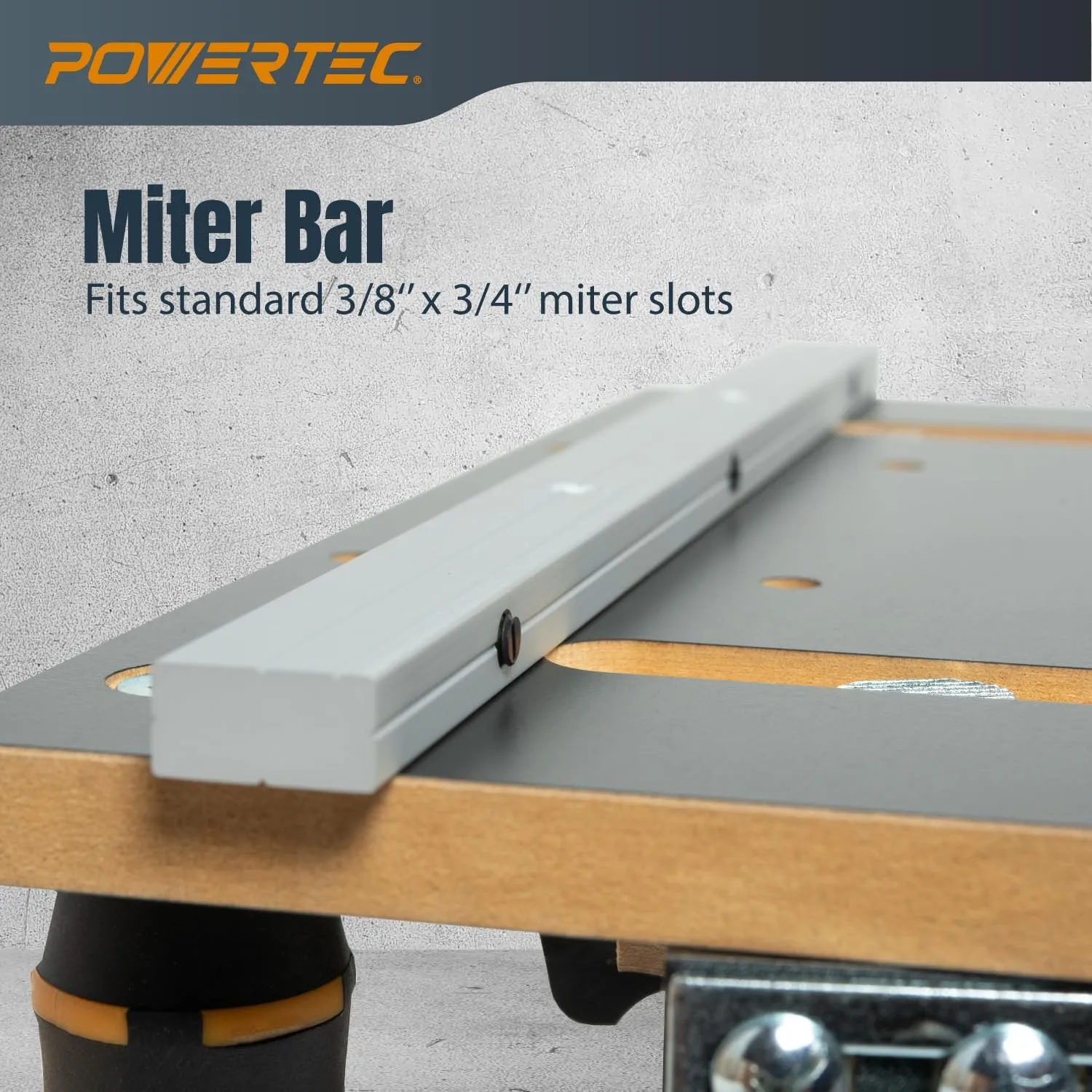

(1) Aluminum Miter Bar 12" x 3/4"x 3/8"
(2) Hold Down Clamps
(4) Adjustment Knobs
(2) Clamp Blocks
(3) Nylon Adjustment Screws, #10-32
(2) Screws, 1/4"-20 x 3/4"
(2) Washers, 1/4"
(2) T-Bolts, 1/4"-20 x 1-1/2"
(2) T-Bolts, 1/4"-20 x 2-1/2"
(1) Handle (4-1/2" long)
(1) Flat Head Screw, 5/16"-18 x 1"
(1) Washer, 5/16"
(2) Abrasive Grip Strips, 1-1/2" x 3-1/2"
(1) Small Screwdriver
